Linear Actuators 101: The Basics of Linear Actuators

Welcome, dear readers! In the vast world of machinery and motion, there exists a realm where precision, control, and directed movement are paramount. This realm, often overlooked by the casual observer, is where the sophisticated dance of components takes place to create the actions and reactions we often take for granted in our daily lives. From the simple slide of a drawer to the complex adjustments of a robotic arm, a common player operates silently yet significantly - the linear actuator.

Delving into this topic is like uncovering the heartbeat of modern mechanical applications. Linear actuators, although seemingly simple in their purpose, have revolutionized how we think about and execute motion in countless industrial, medical, and domestic applications. For anyone eager to explore the depths of what makes machines move, or for those simply curious about the unsung heroes of our mechanized age, strap in as we embark on a journey to unpack the wonders of linear actuators.

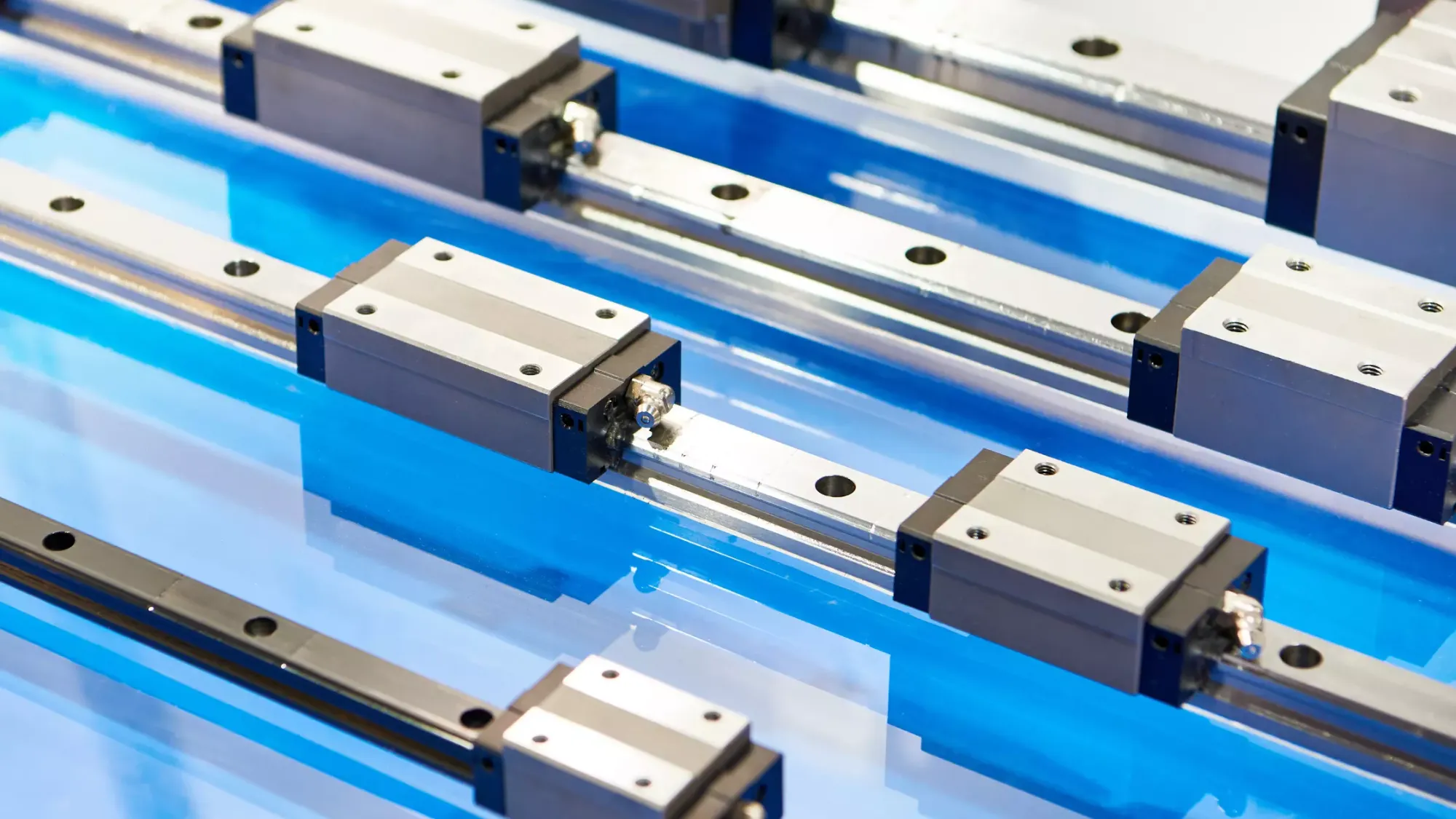

What is a Linear Actuator?

In its most basic form, a linear actuator is a device that creates motion in a straight line, as opposed to the circular motion of a conventional electric motor. Think of it like the sliding action of a drawer or the up-and-down movement of a window. It’s the magic behind the scenes that makes precise linear motion possible.

The Essence of Motion:

All around us, machines and devices create motion. From the spinning blades of a ceiling fan to the revolving wheels of a car, motion is a constant companion in our mechanized age. However, not all motion is created equal. While we often see rotational motion, there's another type of motion that’s equally crucial – linear motion. It's this straight-line movement that linear actuators are designed to produce.

The Mechanism:

A linear actuator does not spontaneously generate linear motion out of nowhere. Instead, it relies on various energy sources and mechanisms to convert that energy into straight-line action. For instance, an electric linear actuator might convert the rotational motion of a motor (thanks to electric energy) into linear motion using screws or gears. Similarly, a hydraulic actuator uses the pressure of a fluid to push or pull in a linear direction.

Versatility in Operation:

Linear actuators come in various shapes and sizes, but their principle remains the same: move things in a straight line. Whether it's the microscopic movement of a lens in an optical device or the robust shifting of heavy machinery in an industrial setup, these actuators ensure accuracy and efficiency.

Significance in Systems:

To truly appreciate the value of a linear actuator, imagine a world without them. Robotics would be far less agile, medical devices like syringe pumps would be non-existent, and even your car seat adjustments would be significantly more manual and less refined. They might be behind-the-scenes players, but their contribution to modern systems is undeniable.

A linear actuator is a marvel of engineering, encapsulating the principles of physics, mechanics, and innovation. It's a device that brings the abstract concept of directed force into tangible, practical, everyday applications, making our world more dynamic, efficient, and precise.

Types of Linear Actuators

As with many technologies, the world of linear actuators is vast and diverse. Depending on the specific application, different actuators are designed to maximize efficiency, precision, or force.

Electromechanical Actuators:

Electromechanical actuators, particularly those driven by servo or stepper motors, are the most commonly used actuators in CNC applications.

Mechanism: Electromechanical actuators are a fusion of electrical and mechanical systems. They often use an electric motor that rotates a screw or a series of gears. This rotational movement is then transformed into linear motion, pushing or pulling a rod in a straight line.

Applications: These actuators are common in automation systems, home appliances, and even in certain automotive applications like car seat adjustments.

Advantages: They offer precise control and can be easily integrated with electronic control systems. Their operation is also typically quieter than some hydraulic systems.

Reasons for Popularity in CNC:

1. Precision and Accuracy: These actuators can provide very precise movements, making them ideal for the fine adjustments required in CNC machining.
2. Control Compatibility: Electromechanical actuators are easily interfaced with digital control systems like CNC controllers, allowing for seamless integration and operation.
3. Repeatability: The combination of a motor with a lead screw or ball screw offers high repeatability, ensuring the same movement is achieved consistently.
4. Versatility: They can be designed to fit various applications, from small desktop CNC routers to large milling machines.
5. Feedback Systems: Many electromechanical actuators equipped with servo motors have integrated feedback systems, which provide real-time information on the actuator's position. This closed-loop system ensures that any deviation from the desired position is immediately corrected.

Hydraulic Actuators:

Mechanism: Hydraulic actuators function based on the principles of fluid mechanics. By compressing a fluid (usually oil) within a cylinder, a piston is moved, creating linear motion. The more the fluid is compressed, the more forceful the movement.

Applications: Their robustness makes them ideal for heavy machinery, construction equipment, and large industrial applications where significant force is needed.

Advantages: They can exert an extremely high amount of force and are highly reliable. However, they require a closed system of pipes and reservoirs for the fluid, making them less suitable for compact applications.

Pneumatic Actuators:

Mechanism: Pneumatic actuators operate similarly to hydraulic ones but use compressed air instead of fluid. The force and motion are derived from the energy of the compressed air.

Applications: Often found in factory automation, some medical devices, and specific tools. They are also used in situations where a clean and low-maintenance solution is required, as there's no risk of fluid leaks.

Advantages: They're generally simpler and less expensive than hydraulic systems, with faster response times. However, the force exerted is often less than that of hydraulic systems.

Piezoelectric Actuators:

Mechanism: These are based on the piezoelectric effect, where certain materials produce an electric charge when mechanically stressed. In these actuators, a piezoelectric crystal expands or contracts when an electric voltage is applied, producing very fine linear motion.

Applications: Due to their precision, they're utilized in micro and nanoscale operations, optical instrumentation, and certain medical equipment.

Advantages: Extremely precise with high-resolution movements. They're also compact and can operate in environments where electromagnetic interference is a concern.

Magnetic Actuators:

Mechanism: Magnetic actuators work on the principle of electromagnetic induction. When a current is applied, it creates a magnetic field, which causes movement in a linear direction.

Applications: These are used in some high-speed trains (maglev), specific automation systems, and devices requiring rapid linear motion.

Advantages: They can achieve high speeds, have a clean operation (no oils or air), and can be very precise if controlled correctly.

The choice of actuator hinges on the specific needs of an application. While some require the brute strength of hydraulic systems, others might need the delicate touch of piezoelectric actuators. As technology continues to advance, so will the capabilities and varieties of these marvelous motion machines.

Practical Aspects to Consider

When selecting or designing with a linear actuator, understanding the technical jargon and datasheets is just half the battle. The real challenges often lie in the practicalities—the nuances that determine how well an actuator will serve its purpose. Let’s guide you through these considerations to ensure your actuator not only fits but excels in its role.

1. Force & Load:

Understanding: The force an actuator can exert and the load it's expected to move are crucial aspects. An actuator's force should be adequate to move the load with some margin for safety and efficiency.

Practical Tip: Always select an actuator with a force capacity greater than your estimated load to account for unforeseen stresses or changes in application requirements.

2. Speed & Precision:

Understanding: The speed at which an actuator operates determines how fast it can complete a task, while precision affects the accuracy of its movement.

Practical Tip: For tasks like CNC machining, where precision is paramount, it's worth investing in actuators with high-resolution feedback systems. Conversely, for tasks requiring rapid movement, look for actuators with higher speed specifications.

3. Duty Cycle:

Understanding: The duty cycle denotes how long an actuator can operate continuously without needing a rest to prevent overheating. Expressed as a percentage, a 50% duty cycle indicates the actuator can run half the time without overheating.

Practical Tip: For applications demanding continuous or near-continuous operation, aim for actuators with a high-duty cycle. Additionally, ensure the environment facilitates proper heat dissipation, extending the actuator's lifespan.

4. Integration & Compatibility:

Understanding: An actuator needs to mesh seamlessly with existing systems, both in terms of physical fit and its ability to communicate or interface with control units.

Practical Tip: Check the mounting options available for the actuator. Also, consider its compatibility with your control systems—whether it uses analog, digital, or specialized communication protocols.

5. Environment & Conditions:

Understanding: The environment in which an actuator operates can significantly impact its performance and longevity. Factors like temperature, humidity, dust, and corrosive atmospheres can affect its operation.

Practical Tip: For challenging environments, seek actuators designed with protective measures, such as sealed casings, corrosion-resistant materials, or even specialized coatings.

6. Power Source & Consumption:

Understanding: Depending on the type, actuators can be powered by electricity, compressed air, hydraulic fluid, etc. The efficiency and availability of the power source are essential considerations.

Practical Tip: Ensure the power source is reliable and sufficient for the actuator's demands. For battery-operated or remote applications, opt for energy-efficient models to maximize operation time.

7. Maintenance & Serviceability:

Understanding: Like all mechanical devices, linear actuators require periodic maintenance. The ease with which they can be serviced or parts replaced is a crucial practical aspect.

Practical Tip: Opt for actuators with modular designs or easily accessible parts to simplify maintenance. Also, consider the availability of replacement parts or service centers, especially for critical applications.

Incorporating these practical aspects into your decision-making process will not only ensure the optimal performance of the actuator but will also extend its service life, ensuring the smooth operation of your applications.

Applications of Linear Actuators

Computer Numerical Control (CNC) machines rely heavily on precise, repeatable movements, making linear actuators indispensable in their operation.

• Tool Positioning: The primary function of CNC machines is shaping materials based on digital designs. Linear actuators move cutting tools along specified axes (X, Y, Z, and even more complex configurations in 5-axis or 7-axis machines) with utmost precision.
• Tool Changing Mechanisms: In machines with multiple tool heads, actuators facilitate the swift and accurate change between tools.
• Workpiece Clamping: Actuators can be used to hold workpieces securely in place during machining, especially in automated setups.
• Probe and Measurement Tools: For advanced CNC machines that incorporate real-time measurement or scanning of workpieces, linear actuators adjust the position of these probes to ensure accurate data collection.

Other Applications:

Automation & Robotics: From the arms of a robot to conveyor belts, linear actuators play a pivotal role.

Medical Devices: Think of the adjustable beds in hospitals or the precision instruments used in surgeries.

Automotive: Adjusting car seats, sunroofs, or even in advanced braking systems.

Home Automation: In devices like automated window openers or adjustable furniture.

Maintenance & Longevity

Like all machinery, linear actuators need care. Regular checks, ensuring the actuator isn't overloaded, and keeping it clean can significantly extend its lifespan. For hydraulic types, fluid levels and potential leaks should be monitored, while pneumatic versions may require periodic air filter changes.

Summing Up

Linear actuators might be one of the unsung heroes of the modern mechanical world. They silently power so many of the conveniences and technological marvels we take for granted. Whether you're planning to integrate one into a project or just expanding your knowledge base, I hope this introduction has shed light on the incredible world of linear actuators.

Remember, in the realm of machinery, it’s not just about movement - it’s about directed movement. And in that department, linear actuators reign supreme. Happy Machining! 🛠️
